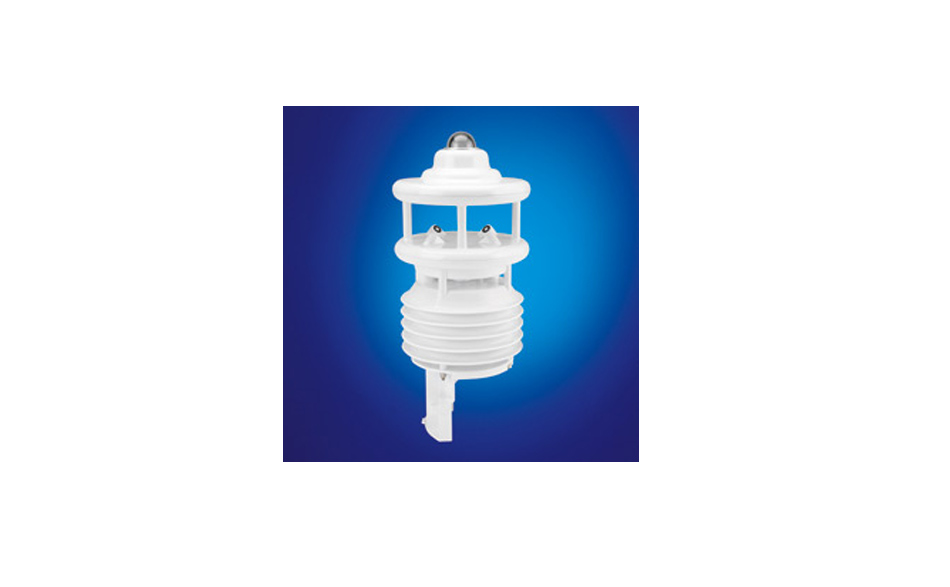

The WS501 Ultrasonic Weather Sensor measures air temperature / relative humidity / air pressure / wind speed / wind direction / solar radiation.
From the WS product family of professional intelligent measurement transducers with digital interface for environmental applications. It has an Integrated design with ventilated radiation protection.
The WS501 is available with low-power setting for remote stations with solar power. Comes with 10m cable.
Measurement output can be accessed by the following protocols: ASCII, UMB, SDI12, MODBUS.
Model: 8375-U01
Relative humidity is measured by means of a capacitive sensor element; a precision NTC measuring element is used to measure air temperature. Ultrasound sensor technology is used to take wind measurements. Measurement data are available for further processing in the form of a standard protocol (Lufft-UMB protocol).
To read more information on this product, please Click Here.
| WS501-UMB | 8375-U01 |
| Dimensions | Ø ca. 5.09" (150mm), Height approx. 11.42" (290mm) |
| Weight | approx. 2.87bs (1.3kg) |
| Temperature | |
| Principle | NTC |
| Measuring range | -58...140°F (-50...60°C) |
| Accuracy | ±0.2°C (-4...122°F/ -20°C...+50°C), otherwise ±0.5°C (>-22°F/-30°C) |
| Relative humidity | |
| Principle | capacitive |
| Measuring range | 0…100% RH |
| Accuracy | ±2% RH |
| Radiation | |
| Response Time (95%) | 18s |
| Non-stability (change/year) | ±1% |
| Non-linearity (0 to 1,000 W/m2) | ±2.5% |
| Directional error (at 80° with 1,000W/m2) | ±20W/m2 |
| Temperature dependence of sensitivity | ±5% (-10 to +40°C) |
| Tilt error (at 1,000W/m2) | ±3% |
| Spectral range (50% points) | 300 to 2,800nm |
| Typical signal output for atmospheric applications | 0 to 20mV |
| Operating temperature | -40 to +80°C |
| Maximum irradiance | 1,500W/m2 |
| Air Pressure | |
| Principle | MEMS capacitive |
| Measuring range | 300...1200 hPa |
| Accuracy | ±0.5hPa |
| Wind direction | |
| Principle | Ultrasonic- 2.4 Ghz |
| Measuring range | 0…359.9° |
| Accuracy | ±3° |
| Wind speed | |
| Principle | Ultrasonic- 2.4 Ghz |
| Measuring range | 0…75m/s |
| Accuracy | ±0.3m/s or ±3% (0…35m/s) |
| General Information | |
| Heating | 40 VA at 24 VDC |
| Protection type housing | IP66 |
| Interface | RS 485 2-wire, half duplex |
| Operating power consumption | 24 VDC +/- 10% < 4VA (without heating) |
| Operating humidity range | 0...100% |
| Operating temperature range | -58...140°F (-50...60°C) |
| Accessories | |
|---|---|
| Surge protection | 8379-USP |
| Power supply 24V/2.5A | 8366-USV4 |
| Power supply 24V/4A | 8366-USV1 |
| Traverse Mounting Bracket | 8367-TRAV1 |
| Digital-analog-converter | 8160-UDAC |
| Temperature Sensor WT1 | 8160-WT1 |
| Rain sensor WTB100 | 8353-10 |
| WS Cables | 8370-UKAB (several lengths available) |
| Tripod, Portable Tripod Mast 6 to 10 ft | ME905 |
| Converter Cable RS485 to USB | 8160-RS485USB |
| GPRS/GSM modem with Camera Port | 8160-MODVIOLA |
| RS232 Connection Cable | 8160-KAB |
| Netronix node with Thiamis ICU | RN500ICU820 |
| Surge Protector for night vision cameras | 8379USPRJ45 |
