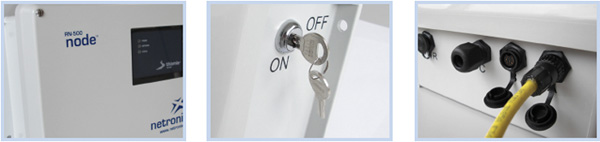

The Node is a remote monitoring system designed specifically for unattended, long-term operation in harsh environments. As a complete, self-contained monitoring system, the Plug-and-Play Node works out-of-the-box (no programming required), turn of a key to "on", connect your Lufft WS monitor to the Node with the provided cable and one click in Environet selects your Lufft WS monitor.

Model: RN500ICU820

The Node™ (controlled by an internal Netronix Thiamis™ ) works by sending data from your Lufft WS monitor to the Netronix Cloud, from where that data can be accessed online via the Netronix web platform, Environet™ streaming live data to your phone, tablet and computer, as illustrated in the figure below.

Node™ RN-500:

• Thiamis™ 820G
• Weatherproof Housing for Thiamis™ ICUs
• GSM and GPS Antennas built-in
• Global 3G/2G SIM card
• Available connection to sensors/monitors (USB, RS-232, RS-485, Digital & Analogue I/O)
• 18Ah Battery and Charger
• Powered With DC or AC NEMA 4, UL Certified

Within its rugged NEMA 4 and UL-certified enclosure, the Node RN-500 contains the Thiamis™ ICU which allows for remote monitoring and control of any devices connected to it. The Node’s™ twist-on circular connectors and convenient cord grips allow for fast and secure connections between the Thiamis™ and external devices. In addition, the Node features a robust power system, supporting both AC and DC power sources, as well as solar panels. The external power source charges an internal long-life battery, capable of powering not only the Thiamis™ ICU, but also the additional devices or sensors connected to it.

Thiamis™ ICU 820 features: 4-in-1 Controller, Data logger, Modem and GPS Communications Link Fail Over, Over-the-Air Configuration, Plug-and-Play, Low-Power

The Thiamis™ ICU (Intelligent Control Unit) is a vital component of this remote monitoring suite. It combines control, data logging, global positioning and telemetry into one compact and purpose-built device, making it the most advanced and cost effective solution for remote monitoring applications in the environmental sector.

Each of the ports on the Node is multiplexed, meaning you can connect multiple instruments to the same port. Compatible instruments include Air Quality monitors, Diesel Fuel Contamination monitors, Gas and VOC monitors, Sound and Noise monitors, Water and Water Quality monitors, Weather monitors, and more.The Thiamis™ ICU 820 can interface with–and control–any type of sensor or external device in the field and establishes direct, secure communications with Netronix's data center, via its built-in GSM modem. The Thiamis™ also allows for alternate means of telecommunications, both for fail-over and to accommodate deployments in remote regions where GSM may not be available. The Thiamis™ is designed for plug-and-play operation, with no complex installation, and supports over-the-air configuration and re-programming, reducing or eliminating costly field trips.

Purchase item

Power

Communications

GPS/Controller

• Power system:
  Input	120-240VAC, 12-24VDC
  Battery	18Ah (Additional Exter nal Battery Available)
  Charge Controller	12V, 6A

• Communications:
  Quad-band EGSM	850/900/1800/1900 MHz
  Output Power	Class 4 (2W) @ 850/900 MHz
  	Class 1 (1W) @ 1800/1900 MHz
  Sensitivity	-107 dBm (typ.] @ 850/900 MHz
  	-106 dBm (typ.] @ 1800/1900 MHz
  GPRS	Class 10
  Antenna	SMA male connector
  General:
  Temperature Range	-40° to 80° ( -22°F to 167°F)
  Humidity Range	0-85% non-condensing
  Power Switch	2-Positions Key Lock
  Connectors	1-Power, 3-Devices/Sensors
  Connector Type	Circular or Cord-Grip
  Mounting	Wall-mount (Pole mount kit available)
  L x W x H	11.45”(290mm) x 9.31”(236mm) x 5.43” (138mm)
  Weight	20lbs (9Kg)
  Certifications	NEMA4, UL, FCC

• GPS:
  Sensitivity	-159 dBm ( indoor operation)
  Accuracy	<2.5 m (8 ft)
  Channel	20
  SBAS Support	WAAS and EGNOS
  Correlators	> 200,000
  Antenna	SMB jack connector
  Controller/datalogger:
  Clock	Real-time
  Memory	4MB (up to 16MB)
  Digital Ports	RS-485, RS-232 (3 Multiplexed), SDI-12
  DeltaPort	Expansion port for Analog and Digital I/O modules
  Antennas:
  GSM / GPRS	Quadband - Gain 2.1dBi (built-in)
  GPS	Active - Gain 27 dBi (built-in)
