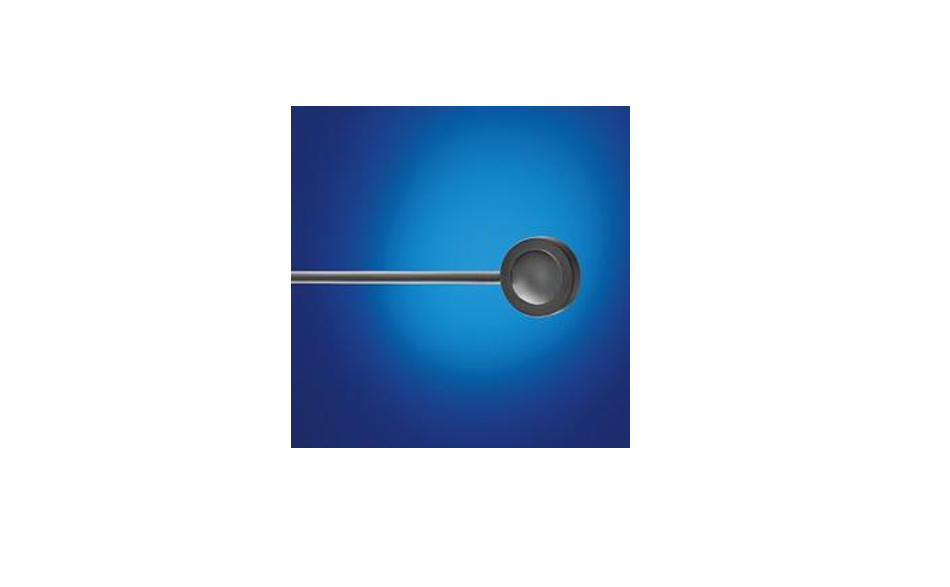

The temperature sensor measures the surface temperature, eg. the surface temperature of a solar module. This remote temperature sensor can be combined with any sensor of the WS family.

Model: 8160-WT1

A typical application is to combination with WS301-UMB or WS501-UMB as a reference sensor how efficient a solar system works.

Each sensor of the WS family has an extra input channel to connect a remote temperature sensor.

Purchase item

Technical Data

• WT1 - Temperature Sensor	8160-WT1
  Dimensions	Ø approx. 1.2" (30mm), Height approx. 1/3" (8mm)
  Weight	approx 0.66 lbs (300g)
  Measuring range	-40-176°F (-40 - +80°C)
  Resolution	0.25°C
  Accuracy	±1°C
  Protection type	IP68
  Op. temperature range	-40 -176°F (–40 - +80°C)
  Cable length	10m
