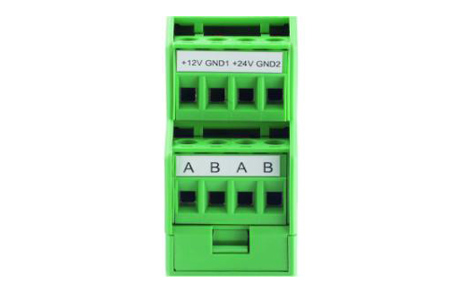

UMB Surge Arrester The surge arrester serves to protect the LUFFT UMB sensors and is installed between the ISOCON-UMB and the UMB sensor. A surge arrester is required for each UMB sensor.

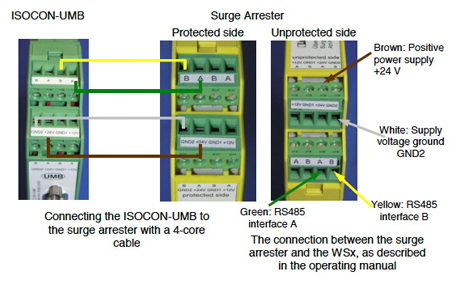

Protected side The ISOCON-UMB is connected to the “protected side”. The connectors on the surge arrester are assigned in exactly the same way as on the ISOCON-UMB.

Unprotected side The UMB sensors are connected on the “unprotected” side. The connectors on the surge arrester are assigned in exactly the same way as on the ISOCON-UMB.

See also our Model: 8379USPRJ45 - Surge Protection for Night Vision Cameras,

Request Quote

Complimentary Products:

UMB Modules-Universal Measurement Bus system technology for recording environmental data.
WS600 Ultrasonic Weather Sensor-temperature/ relative humidity/ air pressure/ wind/ precipitation.
WS501 Ultrasonic Weather Sensor with Solar Pyranometer-air temperature / relative humidity / air pressure / wind speed / wind direction / solar radiation.
WS500 Ultrasonic Weather Sensor-Temperature/ Relative Humidity/ Air Pressure/ Wind.
WS400 Ultrasonic Weather Sensor-temperature/ relative humidity/ air pressure/ precipitation.
WS301 Ultrasonic weather sensor with solar pyranometer-air temperature/ relative humidity/ air pressure/ solar radiation.
WS300 Ultrasonic Weather Sensor-temperature/ humidity/ air pressure.
WS200 Ultrasonic Wind Sensor, Electronic Compass-Ultrasonic Wind Speed/ Direction.
VENTUS Ultrasonic Wind Sensor 240W Heater-Ultrasonic anemometer, 240W heater, metal housing.
V200A Ultrasonic Anemometer with 30W heater-Ultrasonic wind sensor/ wind velocity/ wind speed/ wind direction/ acoustic virtual temperature.

Technical Data

• Surge Protection	8379-USP
  Material	Polyamide, yellow
  Dimensions	22.5x99x92mm
  Protection type	IP20
  Connections	COMBICON connector 0.2 - 2.5mm² (AWG 24 - 12)
  Operating temperature	-30...70°C
  Admissible height above absolute altitude	N/A
  Storage conditions
  Admissible storage temperature	-40...70°C
  Operating rel. humidity	0...100% RH
  Communication backup path
  Max. operating current	100mA
  Max. operating voltage	33V
  Rated leakage current	20kA (8/20µs)
  Supply voltage backup path
  Max. operating current	6A
  Max. operating voltage	25V
  Rated leakage current	20kA (8/20µs)
