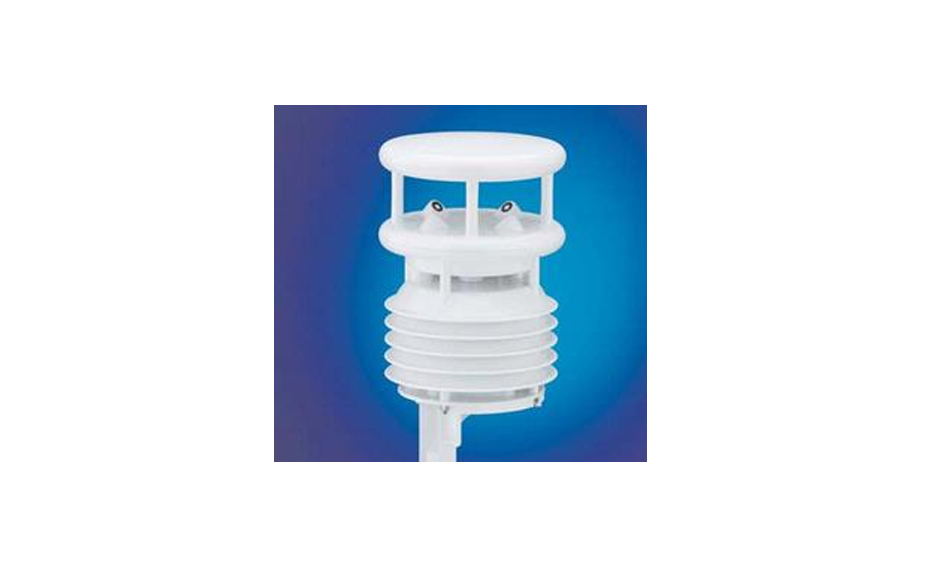

Our WS500 is used for Temperature / Relative Humidity / Air Pressure / Wind direction and speed. From the WS product family of professional intelligent measurement transducers with digital interface for environmental applications. Integrated design with ventilated radiation protection.
Model: 8373-U01
Available with low-power setting for remote stations with solar power. Comes with 10m cable. Measurement output can be accessed by the following protocols: ASCII, UMB, SDI12, MODBUS.
To read more information on this product, please Click Here.
WS500-UMB | 8373-U01 |
Dimensions | Ø approx. 150mm, height approx. 290mm |
Weight | approx. 1.3kg |
Temperature | |
Principle | NTC |
Measuring range | -30...70°C |
Accuracy | ±0.2°C (-20°C...+50°C), otherwise ±0.5°C |
Relative humidity | |
Principle | capacitive |
Measuring range | 0…100% RH |
Accuracy | ±2% RH |
Air Pressure | |
Principle | MEMS capacitive |
Measuring range | 300...1200 hPa |
Accuracy | ±0.5hPa |
Wind direction | |
Principle | Ultrasonic- 2.4Ghz |
Measuring range | 0...359.9° |
Accuracy | ±3° |
Wind speed | |
Principle | Ultrasonic- 2.4Ghz |
Measuring range | 0...75m/s |
Accuracy | ±0.3m/s or ±3% (0...35m/s) |
General Information | |
Heating | 20 VA at 24 VDC |
Protection type housing | IP66 |
Interface | RS 485 2-wire, half duplex |
Operating power consumption | 24 VDC +/- 10% < 4VA (without heating) |
Operating humidity range | 0...100% |
Operating temperature range | -50...60°C |
Accessories | |
---|---|
Surge protection | 8379-USP |
Power supply 24V/2.5A | 8366-USV4 |
Power supply 24V/4A | 8366-USV1 |
Traverse Mounting Bracket | 8367-TRAV1 |
Digital-analog-converter | 8160-UDAC |
Temperature Sensor WT1 | 8160-WT1 |
Rain sensor WTB100 | 8353-10 |
WS Cables | 8370-UKAB (several lengths available) |
Tripod, Portable Tripod Mast 6 to 10 ft | ME905 |
Converter Cable RS485 to USB | 8160-RS485USB |
GPRS/GSM modem with Camera Port | 8160-MODVIOLA |
RS232 Connection Cable | 8160-KAB |
Netronix node with Thiamis ICU | RN500ICU820 |
Surge Protector for night vision cameras | 8379USPRJ45 |
