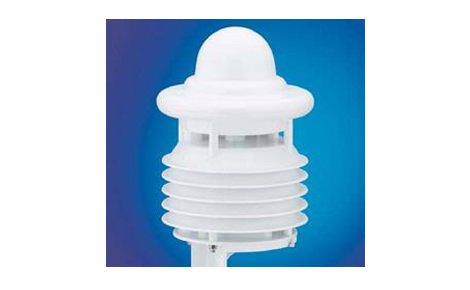

The WS400 is a Temperature, Humidity, Air Pressure and Precipitation (Intensity, type and quantity) sensor. From the WS product family of professional intelligent measurement transducers with digital interface for environmental applications. Integrated design with ventilated radiation protection.
Model: 8369-U01
Relative humidity is measured by means of a capacitive sensor element; a precision NTC measuring element is used to measure air temperature.
Precipitation is measured by a 24 GHz Doppler radar, which measures the drop speed of an individual drop of rain/snow.
Precipitation quantity and intensity are calculated from the correlation between drop size and speed. The difference in drop speed determines the type of precipitation (rain/snow).
Coupled with a Lufft Solar 150 Pyrometer serves as an effective Solar Power Project weather station.
Maintenance-free measurement offers a major advantage over the common tipping spoon and tipping bucket processes.
Available with low-power setting for remote stations with solar power. Comes with 10m cable.
Measurement output can be accessed by the following protocols: ASCII, UMB, SDI12, MODBUS.
To read more information on this product, please Click Here.
WS400-UMB | 8369-U01 |
Dimensions | Ø approx. 150 mm, height approx. 280 mm |
Weight | approx. 2kg |
Temperature | |
Principle | NTC |
Measuring range | -50...60°C |
Accuracy | ±0.2°C (-20°C...+50°C), otherwise ±0.5°C (> -30 ° C) |
Relative humidity | |
Principle | capacitive |
Measuring range | 0…100% RH |
Accuracy | ±2% RH |
Precipitation intensity | |
Resolution | 0.01mm |
Measuring range drop size | 0.3...5mm |
Reproducibility | typ. >90% |
Precipitation type | Rain/snow |
Air Pressure | |
Principle | MEMS capacitive |
Measuring range | 300...1200 hPa |
Accuracy | ±0.5hPa |
General Information | |
Heating | 20VA at 24 VDC |
Interface | RS 485 2-wire, half duplex |
Operating power consumption | 24 VDC +/- 10% < 4VA (without heating) |
Operating humidity range | 0...100% |
Operating temperature range | -50...60°C |
Accessories | |
---|---|
Surge protection | 8379-USP |
Power supply 24V/2.5A | 8366-USV4 |
Power supply 24V/4A | 8366-USV1 |
Traverse Mounting Bracket | 8367-TRAV1 |
Digital-analog-converter | 8160-UDAC |
Temperature Sensor WT1 | 8160-WT1 |
Rain sensor WTB100 | 8353-10 |
WS Cables | 8370-UKAB (several lengths available) |
Tripod, Portable Tripod Mast 6 to 10 ft | ME905 |
Converter Cable RS485 to USB | 8160-RS485USB |
GPRS/GSM modem with Camera Port | 8160-MODVIOLA |
RS232 Connection Cable | 8160-KAB |
Netronix node with Thiamis ICU | RN500ICU820 |
Surge Protector for night vision cameras | 8379USPRJ45 |
