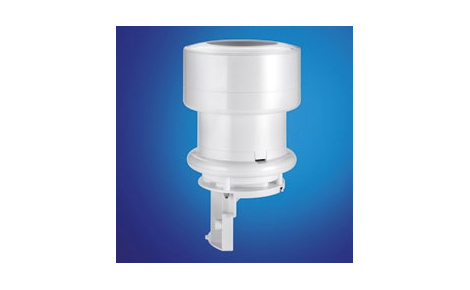

Tipping bucket rain gauge with bounce-free reed contact.
Model: 8353-10
Parameters measured: Rain/precipitation quantity.
Measurement technology: Tipping bucket with bounce-free reed contact (normally closed).
Product highlights:
Resolution can be switched from 0.2 to 0.5 with reduction ring, connectable to any WS-sensor without precipitation measurement.
Interfaces:
Impulse output (reed contact)
.
To read more information on this product, please Click Here.
WTB100 Rain Gauge | Model No. |
---|---|
Rain gauge 0.2mm unheated Rain Gauge with bounce-free reed contact (normally closed) | 8353-10 |
Technical data | |
Dimensions | Ø 165mm, height 285mm |
Connection type | Open cable ends |
Collecting area | 200cm2 |
Resolution | 0.2mm and 0.5mm (tipping bucket), adjustment by reduction ring |
Weight | 930g / ~2.08lbs |
Precipitation | Accuracy ±2% Resolution 0.2 Maximum intensity 144mm/h |
Precipitation (with reduction ring) | Accuracy ±2% Resolution 0.5 Maximum intensity 360mm/h |
Mounting type | On mast, Ø 60-76mm |
Accuracy | ±2% |
