Gateway for Industrial Measurement | Data collectors

The Lufft I-BOX, the door opener for almost every interface – thanks to app-technology! Measurement processes are always designed following specific measurement tasks. The better all measurement devices are integrated and connected to your company infrastructure, the more efficient the processes are. We designed the Lufft I-BOX to meet different integration requirements and to facilitate your measurement tasks. Software-sided limits can be bypassed. The way is clear for seemingly limitless industrial measuring technology!

Model: 8200-40

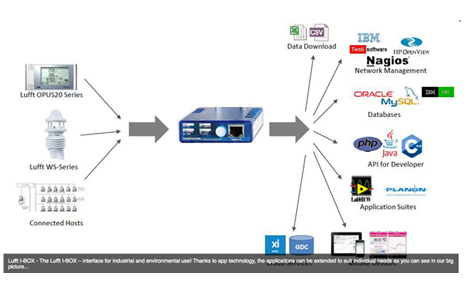

With the Lufft I-Box, measurement instruments such as the data logger OPUS20 can easily be integrated into corporate networks. The “plug-and-play” solution gives a uniform query to live data from different instruments. All data can be clearly displayed. In addition, an application for controlling alarms is included. The applications can be extended to suit individual needs.

Special features:

• Easy commissioning (Plug & Play)
• Configuration and remote maintenance via browser interface
• Applications upgradeable as required – thanks to App Technology
• Increased interference immunity for the industrial environment
• Transmission of measured values to the corporate network

Purchase item

To read more information on this product, please Click Here.

Technical Data

• Power supply	24 … 48V DC (+ / -10%) using screw terminals
  Power consumption	60mA @ 24V || 40mA @ 48V
  Mounting	Integrated DIN rail mount
  Weight	approx. 140g
  Connections	1 x network (RJ45) & Screw terminals for supply voltage (alternative to PoE)
  Dimensions, housing	Plastic compact housing (105 x 75 x 22mm)
  Ambient temperature	Row mounting: 0 … 65°C | Non-row mounting: 0 … 70°C
  Relative humidity	<90% RH non-condensing
