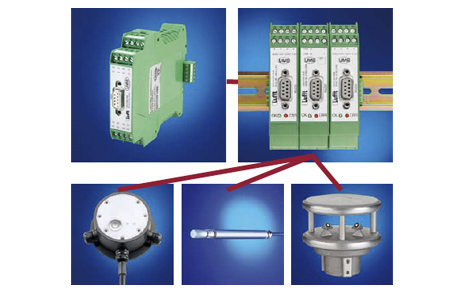

The Lufft-DACON8-UMB (Digital-Analog-Converter) converts up to 8 channels into analog output signals. The converter can be used with one or a combination of different UMB sensors.

The Lufft-DACON8-UMB uses the UMB protocol of the sensors to read the data and converts the digital data into voltage or current output. In case of having only one Lufft UMB sensor, the combination of the sensor and DACON8-UMB works without any other interface inbetween. If the Lufft DACON8-UMB has to convert data of more than one Lufft UMB sensor, then every UMB sensor needs a Lufft ISOCON between the sensor itself and the DACON8-UMB, and must be connected to the RS485-bus.

In case there are more than 8 channels requested by the application, the DACON8-UMB application can work with more than one converter. It is necessary to use one converter per DACON8-UMB.

Model: 8160-UDAC

Purchase item

Technical Data

• DACON8-UMB (Digital/Analog converter)	8160-UDAC
  Technical data
  Current:	0 or 4-20 mA
  Voltage	0 or 2-10 V
  Accuracy	max. 0.5% over the whole range
  Maximum load/	300 O
  Resolution	16 bits
  UMB Channels	adjustable
  Max channels	8
  Update rate	1-10 seconds
  Only one DACON8-UMB per bus
