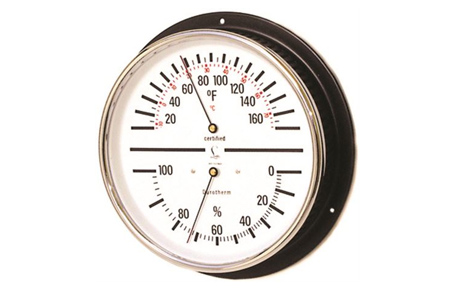

Humidity and Temp - Meter with white face & black case lettering.
Model: 5064-34
NIST Certification available
The humidity is sensed by a durotherm element that is a synthetic hygroscopic fiber that expands and contracts in response to the moisture in the air.
The temperature is indicated by the actuation of a bimetallic spring which transmits changes by expansion and contraction. The calibration and certification are done under ISO-9001 control.
Case | Black Aluminum with Flange for Mounting and Chrome Bezel (keyhole in back for hanging) |
Size | 6" overall, 5" dial |
Range | 0 to 100% RH, 10 to 170°F -12 to 75°C |
Accuracy | Relative Humidity: ±3% + 1 scale graduation. Temperature: ±1°C (0...40°C) + 1 scale graduation. |
Graduation | 2% RH 5°F and 2°C |
Test Certification Included |
