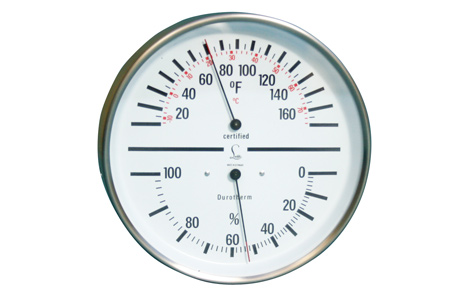

Fischer Humidity and Temp - Dial w/ White Face & Stainless steel case.
Model: Fischer 5063-33
NIST Certification
available
The humidity is sensed by a durotherm element that is a synthetic hygroscopic fiber that expands and contracts in response to the moisture in the air.
The temperature is indicated by the actuation of a bimetallic spring which transmits changes by expansion and contraction. The calibration and certification are done under ISO-9001 control.
Technical Data | 5063-33 |
Case: | Stainless steel |
Dimensions | 5.25" case x 1.5" high; 115mm , x 33mm |
Weight | 10 oz, 320g |
Relative Humidity | |
Principle | Durotherm |
Measuring Range | 0...100% RH |
Accuracy | ±3% + 1 scale graduation |
Graduation | 2% RH |
Temperature | |
Principle | Bi-metal |
Measuring Range | 10...170°F (-10...76°C) |
Accuracy | ±1°C (0...40°C) + 1 scale graduation |
Graduation | 5°F (2°C) |
