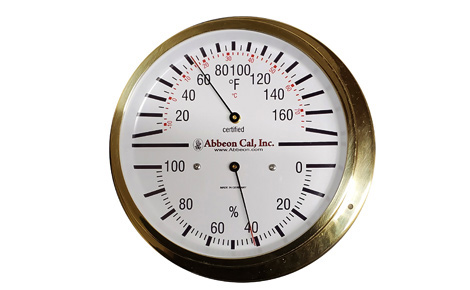

Fischer Humidity & Temperature - Dial w/ White Face & Brass Case.
NIST Certification available/
Test certificate included! A beautiful Fischer / Lufft instrument with easy-to-read face. These units have been giving accurate readings for many years. Made in Germany by Fischer / Lufft and accurate to ±3% + 1 scale division (30 to 95% relative humidity and ±1°C (0 - 40° C) + 1 scale graduation on the temperature.
The humidity is sensed by a durotherm element that is a synthetic hygroscopic fiber that expands and contracts in response to the moisture in the air.
The temperature is indicated by the actuation of a bimetallic spring which transmits changes by expansion and contraction. The calibration and certification are done under ISO-9001 control.
Case | Housing is solid brass, polished and lacquered. with flange |
Size | 6" overall, 5" dial |
Range | 0 to 100% RH |
-10°F to +170°F | |
Accuracy | Relative Humidity: ±3% + 1 scale graduation. Temperature: ±1°C (0...40°C) + 1 scale graduation. |
Graduation | 2% RH 5°F / 2°C Test Certificate Included. |
