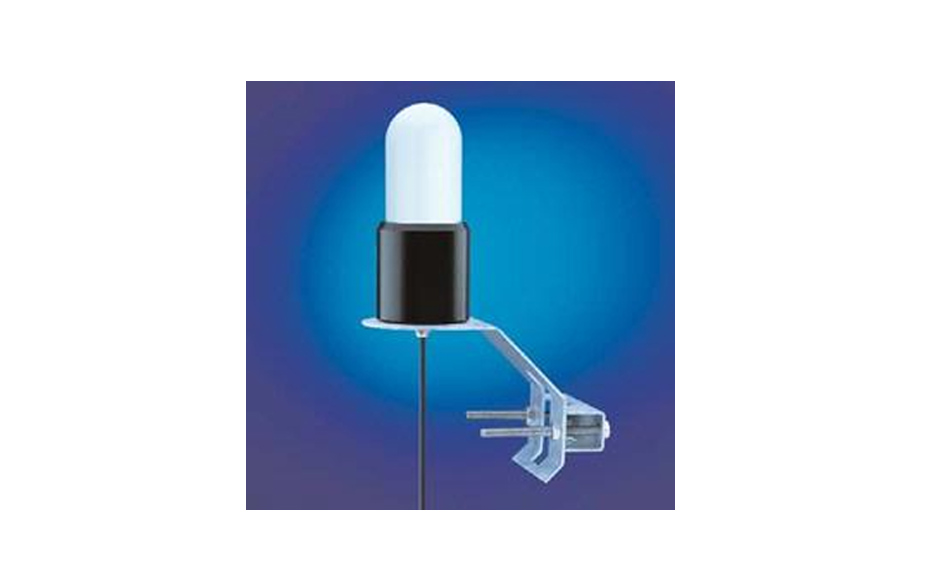

Present weather sensor for precipitation speed/type/intensity. The drop speed is captured with a 24-GHz-Doppler radar. The precipitation quantity and intensity is calculated from the correlation between drop size and speed. The type of precipitation (rain, snow, sleet, freezing rain, hail) is detected from the difference in drop speed.

Model: 8367-U01

The measurement data is available for further processing in the form of a standard protocol (Lufft UMB protocol). Maintenance-free; Fast response time; Present weather detector; Resolution 0.01mm.

Purchase item

Technical Data

Additional Equipment

• R2S-UMB Precipitation sensor	8367-U01
  with UMB, pulse and frequency interface	8367-U02
  Resolution liquid precipitation	0.01…0.1…1.0 mm/m2
  Power supply	20…28 VDC
  Power consumption without heating	2 VA
  Heating power/24V	30 VA
  Op. temperature range	–30 … 70 ° C
  Op. humidity range	0 … 100 %
  Protection	IP67
  Interface	RS485 semiduplex wire, UMB protocol, pulse and frequency interface
  Cable length	10m
  Measuring range hail	5.1…approx. 30 mm
  Type of precipitation	Rain, snow, sleet, freezing rain, hail
  Precipitation
  Principle	Doppler-Radar
  Reproducibility	typ. > 90 %
  Measuring range drop size	0.3…5 mm

• Accessories
  Protection shield for R2S	8367-SCHIRM
  Traverse for R2S	8367-TRAV
  UMB interface converter ISOCON	8160-UISO
  Power supply 24V/4A	8366-USV1
  Surge protection	8379-USP
  Digital-analog-converter	8160-UDAC
