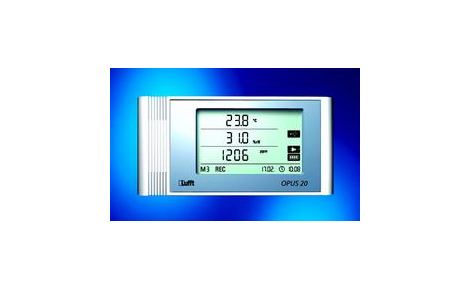

Opus 20 Datalogger TCO
Datalogger for Temperature, RH, and CO2.

Lufft offers a variety of models with internal or external sensors for recording humidity, temperature, pressure and CO2.

For climate monitoring and recording in buildings, air conditioning units, laboratory, cleanroom, storerooms and museums, alarm indication (current or historical since the last data transmission), conversion of the display from %RH to absolute humidity or dewpoint with SmartGraph professional software.

A high level of CO2 in the air within a room causes headaches, tiredness and lack of concentration. The regulation on CO2 concentration was established in order to evaluate IAQ (Indoor Air Quality). As a guideline for school rooms in the USA the limit of 1,000 ppm applies; for workplaces the occupational exposure limit is 5,000 ppm.

• Economically priced
• Comes with SmartGraph 3 software, connecting cable and manual— everything needed to record and download
• NIST Certification and antitheft wall-mounting device optional
• POE (power over ethernet), USB, RS232 options on each model


• 8120-20 Opus 20 Datalogger for Temp, RH, CO2
• 8120-21 Opus 20 Datalogger for Temp, RH, CO2 POE
• NIST Certification



Purchase item

To read more information on this product, please Click Here.

Technical Data

• OPUS 20 temperature/ rel. humidity	8120-00
  OPUS 20 temperature/ rel. humidity POE	8120-01
  Dimensions	6½" x 3" x 1¼" (166mm x 78mm x 32mm)
  Measuring interval	10/30s, 1/10/12/15/30min, 1/3/6/12/24h
  Construction	Plastic housing
  Operating time with battery	> 1 year
  Data storage	16 MB, 3,200,000 measured values
  LC-Display	3½" x 2½" (90 x 64mm)
  Weight	8 oz. (250g)
  Included in delivery	PC-Windows™- Software SmartGraph 3 for graphic and numerical representation of measured values / instruction manual/ data cable/ battery
  Interface	USB, LAN
  Storage rate	1/10/12/15/30min, 1/3/6/12/24h
  Power supply	4 x LRG AA Mignon, USB, (POE opt.)
  Operating temperature	-4 to 144°F (-20...50°C)
  Temperature
  Principle	NTC
  Measuring range	-4 to 144°F (-20...50°C)
  Accuracy	±0.3°C (0...40°C), otherwise 0.5°C
  Resolution	0.1°C
  Relative humidity
  Principle	capacitive
  Measuring range	10..95% RH
  Accuracy	±2% RH
  Resolution	0.5% RH
  CO2
  Principle	NDIR
  Measuring range	0...5000 ppm
  Accessories
  4 x LRG AA Mignon 8120.SV1	8120-SV1
