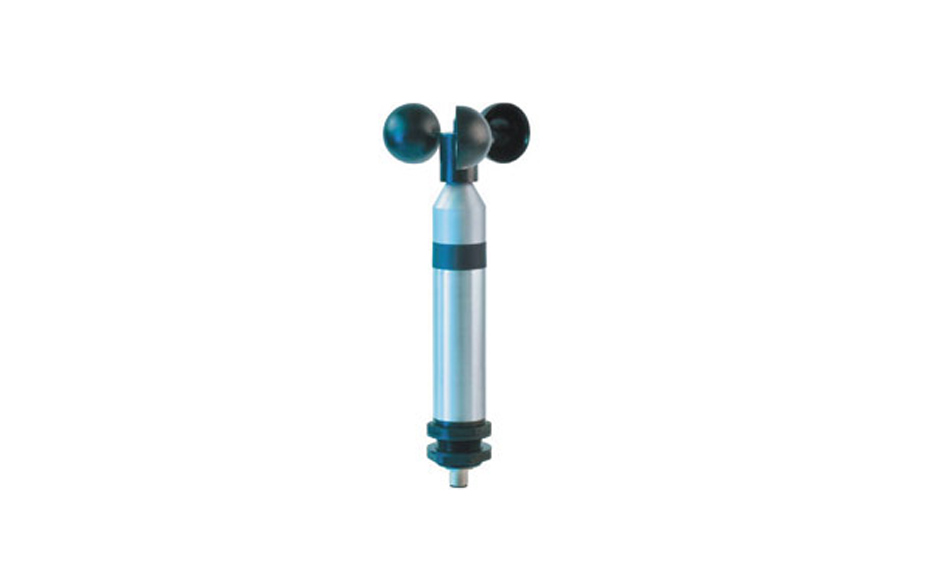

Industry Wind Speed / Wind Direction Sensor. Industry quality cups and vanes.
Model: 8368-200 0..20mA Output
(Wind Direction)
Model: 8368-210 0..20mA Output (Wind speed)
Recommended for:
To Purchase click on above links
To read more information on this product, please Click Here.
| Wind direction sensor | 8368.200 |
| Dimensions | 232mm L, 327mm H |
| Weight | 0.35kg |
| Measuring range | 0...360° |
| Accuracy | ±2% |
| Resolution | 2° |
| Starting value | 0.7m/s |
| Output | 0/4...20mA · 0...10V |
| Supply Voltage | 24 VDC (20...28 VDC) |
| Wind speed sensor | 8368.210 |
| Measuring range | 0.7...50m/s |
| Accuracy | less than ±2% FS |
| Resolution | 0.02m/s |
| Starting Value | <0.7m/s |
| Output | 0/4...20mA · 0...10V 0...XX Hz |
| Supply Voltage | 24VDC(20...28VDC) |
| Units | see above |
| Temperature | -30...70°C in speeds up to 0...60m/s |
| Housing | Anodized aluminum IP53 Ø 32mm |
| Accessories | |
|---|---|
| Mast adapter Ø 50mm | 8368.Z100 |
| Traverse, for mast Ø 30-80mm length 825mm | 8368.Z101 |
| Traverse, for mast top 50mm, length 600mm | 8368.Z102 |
| Lightning rod | 8368.Z103 |
