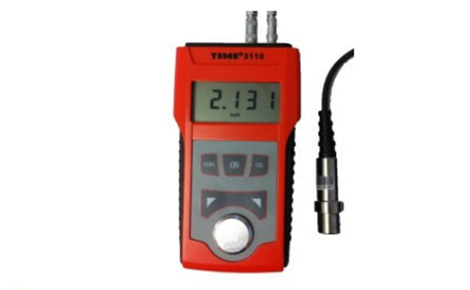

Model: TIME2110

Time Group ultrasonic thickness gauges measure the thickness of ultrasonic wave well-conductive materials with parallel top and bottom surfaces. It measures the thickness of both metal (steel, aluminum, titanium, etc.) and nonmetal (plastics, ceramics, glass, etc.) parts. They are commonly used to measure (remaining) wall thickness of pipes and pressure vessels.

The display is mm/inch selectable. Automatic calibration. Built-in test block.

TIME2110 can be used in, but not limited to the following industries:

• Machine tool industry
• Car spare parts, forklift truck and engine industry
• Aviation and space industry
• Universities and institutes
• Spare parts of spinning-machine: gauze-leading wheel and all kinds of core-shafts
• Printing machines & material, plate-making machine (PS printing plate), aluminum foil
• Hydraulic instruments and pressure vessels
• Pottery products
• Petroleum machine and parts
• Machines for food, oil and beer
• Machines of light industry
• Papermaking machines
• Close casting, forging
• Steel and powder metallurgy industry
• Electronic instruments, electric control equipments, communication equipments
• Manufacturing of motors
• Manufacturing of batteries
• Machines in pharmaceutical industry.

Standard accessories: Calibration certificate, Main unit, Probe 5P Ø 10, 2×1.5V AA batteries, Instruction manual 2oz coupling paste, Carrying case.

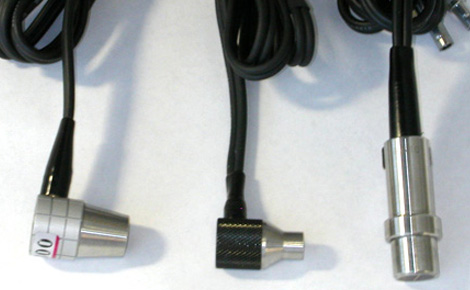

Optional accessories: Probe 5P Ø 10/90º for low clearance, Probe SZ2.5P for thick rough parts, Probe 7P Ø 6 for thin parts, Coupling paste.

Optional Probes ($95.00 each - FOB NJ)

Purchase item

Technical Data

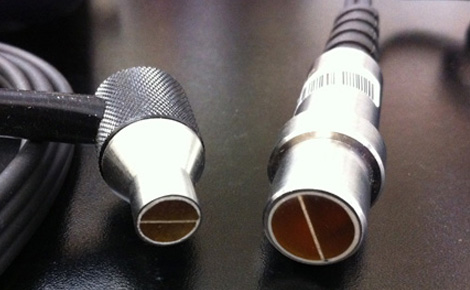

• Probes $95 each	Frequency	Measuring range(steel)	Min area Φ	Min pipe size	Characteristic
  TT5P10	5 MHz	1.2-225mm	12mm	Φ20x3mm	Standard Straight
  TT5P1090	5 MHz	1.2-225mm	12mm	Φ20x4mm	Optional 90° Head
  TTSZ25P	2.5 MHz	3-300mm	14mm	~	Thick Surface/ Rough Surface
  TT7P6	7 MHz	0.75-60mm	7.5mm	Φ15x2mm	Thin Material

  • Display resolution: 0.1mm / 0.001 inch
  • Material velocity range: 1000-9999 meters/second (0.039-0.3937 in/μs)
  • Preset sound velocities: 5 materials
  • Tolerance: ±(1%H+0.1) mm, H=actual thickness
  • Memory: 10 readings
  • Low battery indicator
  • Operating temperature: -10º to 60ºC
  • Power source: 2×1.5V AA batteries, 250 working hrs
  • Weight: 250g (including batteries)
  • Dimensions 126×68×23mm (5×2.7×0.9 inch)
