Dual Channel Data Logger Thermometer
For Automotive, Chemical, Food Industry, Paper and Pulp Applications.
Model: EVT11
This high accuracy thermometer works with the seven most popular thermocouple types: K, J, T, E, R, S & N. It is designed to deliver years of trouble-free service: lab use, preventive maintenance, heat-treating, product quality, and general measurements.

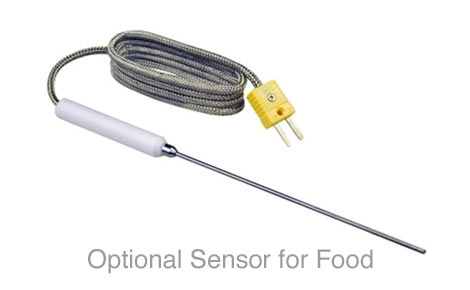

For the most accurate readings with the lowest margin for error, it is recommended to use our assured accuracy sensors (For food grade applications we recommend our 4" Needle Temp Sensor, click here).
Features:
- Wireless data transmission
- USB interface
- Easy to read up/down keys
- DC 12V adapter
- Basic accuracy: 0.05%
- Dual inputs with K/J/E/T/R/S/N thermocouples
- Triple display with adjustable back light
- Real time clock & calendar
- Audible warning with Hi/Lo setting
- Max/Min/Avg/Rel/Hold function
- Main display for T1/T2,
- Third display for T1-T2, with real time clock & calendar
- Data logger capacity: Save data: 256 samples with real-time data
- Data logger: 16 sets, Max 16000 data capacity.
Purchase item
Download our one page flyer.
- Technical Data
-
Temperature Specifications:
- K-TYPE (0.1°, 1° above 2000 °F) -200 °C to 1372 °C (-328 °F to 2501 °F)
- J-TYPE (0.1°, 1° for above 2000 °F) -210 °C to 1200 °C (-346 °F to 2192 °F)
- T-TYPE (0.1°) -200 °C to 400 °C (-328 °F to 752 °F)
- E-TYPE (0.1°) -210 °C to 1000 °C (-346 °F to 1832 °F)
- R-TYPE (1°) 0° C to 1767 °C (32 °F to 3212 °F)
- S-TYPE (1°) 0° C to 1767 °C (32 °F to 3212 °F)
- N-TYPE (0.1°, 1° for above 2000 °F) -50 °C to 1300 °C (-58 °F to 2372 °F)
|
Accuracy:
K/J/T/E-TYPE:
(0.05% rdg+0.7 °C) -210 C to -50 °C (0.05% rdg+0.3 °C) -50 °C to 1372 °C
(0.05% rdg+1.4 °F) -346 °F to -58 °F (0.05% rdg+0.6 °F) -58 °F to 2501 °F.
N-TYPE:
(0.05% rdg+0.8 °C) -50 °C to 0 °C (0.05% rdg+0.4 °C) 0° C to 1300 °C
(0.05% rdg+1.6 °F) -58 °F to 32 °F (0.05% rdg+0.8 °F) 32 °F to 2372 °F
R/S-TYPE:
(0.05% rdg+2 °C) 0 °C to 1767 °C
(0.05% rdg+4 °F) 32 °F to 3212 °F
Data logger capacity: Save data: 256 samples with real-time data
Data logger: 16 sets, Max 16000 data capacity.
NIST Certification available, please contact us for details (800) 922-0977. |
