DISCONTINUED ITEM!

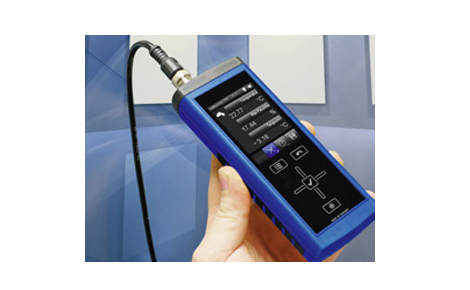

Model: 5820-00K
X-pert range for humidity and temperature measurements in climate and environmental technology.
5820-00K includes:
To read more information on this product, please Click Here.
| XP200 Kit | Model: 5820-00K |
| Dimensions | Meter: 6.7 x 2.5 x 1.34", 170x62x34 mm Case: 8 x 12 x 3 1/2" |
| Weight | Meter Approx.7.4 oz, 205g Kit Approx. 2 1/2 lbs |
| Storage conditions | |
| Permissible ambient temperature | 68 to 140°F, -20 to 60°C |
| Operating rel. humidity | <90%r.h. non-condensing |
| Operating conditions | |
| Operating rel. humidity | <90%r.h. (20g/m3) non-condensing |
| Admissible height above absolute altitude | 4000m |
| Power supply | |
| Power supply | 4 Alkaline LR6 AA 1.5V / USB 5V |
| Active power consumption | Approx. 400mW |
| Battery life passive | Approx. 1 year |
| Battery life active | min. 24 hours |
| Sensor power supply | 5.5V ± 10% DC, max. 200mA |
| Data storage | |
| Integrated data storage | up to 200 gauges taking approx. 1 mill. values |
| Interface | |
| USB | Cable and SmartGraph3 software included in delivery |
| Display | |
| Definition of measured values | 2 decimal places |
| Display | |
| Control | Touch screen, capacitive |
| Technology | TFT, resolution 240x320, 65k colors, very good contrast due to Piezoresistive technology |
| Surface, toughened glass | Degree of hardness: 7, scratch-resistant |
| Calculated measurement categories for external temperature/humidity sensors | Mathematical: MIN/MAX/AVG/HOLD Temperature (°C/°F) Rel. humidity (%r.h) Rel. humidity of ice (%r.h) Water vapor density (absolute humidity) g/m3 Dew point temperature °C/°F Frost point temperature °C/°F Mixing ratio at saturation (100%) g/kg Volume fraction of water vapour /mass fraction of water vapour (%) Wet-bulb temperature °C/°F Ice-bulb temperature °C/°F Specific Enthalpy (mass of air) kJ/kg Saturation vapor pressure above ice/water (hPa) Vapor particle pressure (hPa) Air density kg/m3 |
| SDI Temperature/Humidity Sensor | Model 9130-54 (Included) |
| Technical data: | Dimensions: Length 3" (74mm), Ø 1/2" (12mm) |
| Relative humidity: | Measuring range: 0…100%RH |
| Accuracy: | ±2% (0...90%) ±3% (90...100%) RH |
| Temperature: | |
| Principle: | NTC |
| Measuring Range: | -4 to 158°F (-20 to 40°C) |
| Accuracy: | ±0.2°C at 20°C |
| Accessories | |
|---|---|
| SDI Temperature/Humidity Sensor with 4mm diam. | 9130-520 |
| SDI High Temperature/Humidity sensor | 9130-530 |
| Extension cable for sensor, 10m | 8120-KAB10 |
