Our Highest Precision Hand-Held Temp/Humidity (CO2 with optional sensor) Meter with Watertight Case, 8130.TFF Sensor, Cable and Batteries!
Model: 5810-20
NIST Certification available.

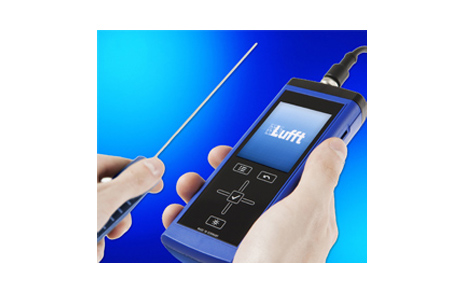

Highest-precision measurements for industrial temperature and humidity calibrations The XP-201 (Model 5810-20) is the perfect choice when highest-precision measurements are needed for industrial temperature and humidity calibrations. It is suitable as a humidity reference in climate chambers or humidity generators. A mini USB interface with software and online data collection are included.

The most accurate handheld device (0.5%) for relative humidity. Ideal as a reference standard. Excellent stability, very good repeatable measurements, absolute hysteresis latitude as well as no drift of the measurement value at very high humidity levels. For traceability to national standards a DAkkS calibration certificate is attached. Special features: 0.5% accuracy, high quality watertight case, resistive-electrolytic sensor, 2m cable, on/off switch, Touch Screen, batteries and DAkks calibration certificate are included.

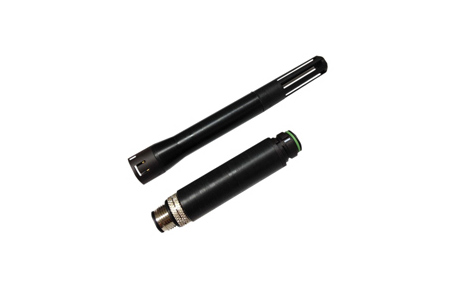

Two page brochure here. See optional 8120-TFF (Temp/RH) and 7120-CO2 (CO2) sensors for use with this meter.

Purchase item

Technical Data

• Sensor power supply	5.5 V ± 10 % DC, max. 200 mA
  Integrated air pressure sensor
  Measuring range	800...1100 mbar
  Accuracy at 25°C, 1013.25mbar	0.5 mbar
  Long-term stability	typ. 1mbar/year
  Measurement resolution	0.024 mbar
  Measuring principle	Piezoresistive
  Calculated measurement categories for external temperature/humidity sensors	Mathematical: MIN/MAX/AVG/HOLD Temperature °C/°F Rel. humidity %r.h Rel. humidity of ice %r.h Water vapour density (absolute humidity) g/m3 Dew point temperature °C/°F Frost point temperature °C/°F Mixing ratio at saturation (100%) g/kg Volume fraction of water vapour /mass fraction of water vapour % Wet-bulb temperature °C/°F Ice-bulb temperature °C/°F Specifi c Enthalpy (mass of air) kJ/kg Saturation vapour pressure above ice/water hPa Vapour particle pressure hPa Air density kg/m3
  General
  Dimensions	6.7 X 2.5 X 1.34", 170 x 62 x 34 mm
  Weight	Approx. 7 1/4oz, 205 g
  Housing material sensor	PVDF black
  Mechanical sensor protection sensor	Standard polyethylene dust filter
  Storage conditions
  Permissible ambient temperature	-10...60 °C
  Operating rel. humidity	<90 % RH non - condensing
  Operating conditions
  Operating rel. humidity	<90 % RH non - condensing
  Operating temperature	-20...80 °C
  Admissible height above absolute altitude	4000 m
  Power supply
  Power supply	4 Alkaline LR6 AA 1.5 V/USB 5 V
  Active power consumption	Approx. 400 mW
  Battery life passive	Approx. 1 year
  Battery life active	min. 24 hours
  Data storage
  Integrated data storage	Up to 200 gauges taking approx. 1 mill. values
  Interface
  USB	Cable and SmartGraph3 software included in delivery
  Display
  Definition of measured values	2 decimal places
  Display
  Control	Touch screen, capacitive
  Technology	TFT, resolution 240 x 320, 65 k colours, very good contrast due to Piezoresistive technology
  Surface, toughened glass	Degree of hardness: 7, scratch - resistant
  Relative Humidity
  Principle	Resistive - electrolytic
  Measuring range	0 ... 100 %
  Unit	%
  Measurement accuracy incl. reproducibility and hysteresis	:Humidity*: 15...30 °C, ±0.5 % RH | 0...50 °C, ±0.8 % RH | -20...80 °C, ±2.5 % RH (*The humidity accuracy refers to the nominal values of Novasina humidity standards, which refer to the Greenspan Report.)
  Number of calibration points	:Humidity: 13 points over full measurement range | Temperature: 2 points over full measurement range
  Temperature
  Principle	NTC
  Measuring range	-20 ... 80 °C
  Unit	°C
  Accuracy	0.15 °C between 0 +70 °C, otherwise 0.25 °C
