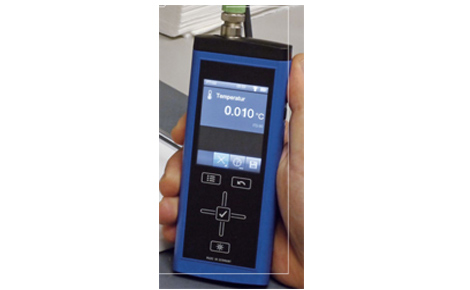

Highest Precision Hand-Held Temperature (& CO2 w/optional sensor) Meter with Watertight Case and PT100 Ceramic Sensor
Model: 5810-10
NIST Certification available.
Highest-precision currently on the market reference measurement standard for industrial temperature calibrations. Suitable as temperature reference in block calibrators, climate chambers or liquid baths. Mini USB interface with software, online data collection. Features on/off switch and touch screen.
The most accurate handheld device (0.005°C) for temperature (and optional 7120-CO2 (CO2) sensor) for use with this meter.. Ideal as reference standard.
Excellent stability through multiple annealing cycles. Sensor characteristic curve is determined individually and is saved in the device. Integrated root 2 function for determination of the sensor self-heating, plus automatic elimination of parasitic thermovoltage. For traceability to national standards a DAkkS calibration certificate is attached.
To read more information on this product, please Click Here.
| Hand-held device XP101 (5810-10) | |||
| Technical data | Dimensions | 6.7 x 2.5 x 1.34", 170 x 62 x 34 mm | |
| Weight | Approx. 7 1/4 oz, 205g | ||
| Temperature | Measurement range | -238 to 842°F, - 150 … 450 °C | |
| Accuracy | 0.005°C at 0.005°C otherwise -40...+200°C 0.02°C | ||
| Measuring technique | Four terminal sensing | ||
| Reaction time | 10 s | ||
| Measuring current in normal operation | 1 mA DC with duty cycle of 50% = 0.50 mA, 1.85 measurements/sec. Automatic elimination of thermo voltage | ||
| Measuring current “root 2 function | 1 mA DC with duty cycle of 33% = 0.30 mA, 1.25 measurements/sec. Automatic elimination of thermo voltage | ||
| Integrated sensor characteristic curves | DIN EN IEC 60751 / ITS-90 or XP101-mode | ||
| Storage conditions | |||
| Permitted ambient temperature | -4 to 140°F, -20 to 60°C | ||
| Permitted rel. humidity | <90% RH non-condensing | ||
| Operating conditions | Permitted rel. humidity Permitted altitude | <90% RH non-condensing 4000m | |
| Power supply | Power supply Active power consumption Battery life passive Battery life active Sensor power supply | 4 Alkaline LR6 AA 1.5V / USB 5V Approx. 400mW Approx. 1 year Min. 24 hours 5.5V ± 10% DC, max. 200mA | |
| Data storage | Integrated data storage | Up to 200 data/approx. 1 Mio measured values | |
| Interface | USB Cable and SmartGraph3 software included in delivery | ||
| Resolution | Definition of measured values | 3 decimal places | |
| Display | Control | Touch screen, capacitive | |
| Technology | TFT, resolution 240x320, 65k colors, very good contrast, suitable for sunlight | ||
| Surface, toughened glass | Degree of hardness: 7, scratch-resistant | ||
| Accessories | Extension and/or connecting cable for digital sensor, 10m Power supply adapter 8120-NT | 8120-KAB10 8120-NT | |
| Precision PT100 (immersion) probe, long (included) | |||
| Precision PT100, ceramic sensor, bifilar coiled, mineral insulated version | 3120-700 | ||
| Technical data | Dimensions, probe | 300 x 4 mm | |
| Dimensions, housing | 119 x 27/35 mm | ||
| Weight | 120g | ||
| Protective housing | IP40 | ||
| Max. permitted operating temperate | PUR cable and handle can be used up to 80°C | ||
| Compatibility | XP100, XP101 |
