You are here: Home / Products / Hand Held Digital Instruments
Hand-held Temperature / Humidity Measuring Device for use with PT-100 Sensors.
Model: 5810-00K
(NIST Certification available)

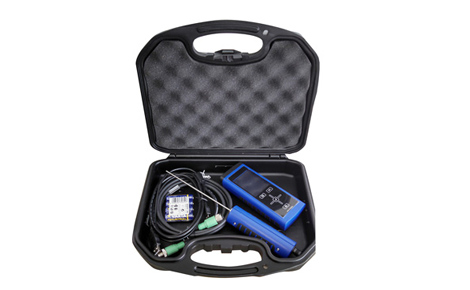

Model 5810-00K Kit includes:
To read more information on this product, please Click Here.
| XP100 Kit | 5810.00K |
| Dimensions | Meter: 6 3/4 x 2 1/2 x 1 1/3",170x62x34 mm, Case 8 x 12 x 3 1/2" Kit Approx. 2 1/2 lbs |
| Storage conditions | |
| Permissible ambient temperature | -20...60°C |
| Operating rel. humidity | <90%r.h. non-condensing |
| Operating conditions | |
| Operating rel. humidity | <90%r.h. (20g/m3) non-condensing |
| Admissible height above absolute altitude | 4000m |
| Power supply | |
| Power supply | 4 Alkaline LR6 AA 1.5V / USB 5V |
| Active power consumption | Approx. 400mW |
| Battery life passive | Approx. 1 year |
| Battery life active | min. 24 hours |
| Sensor power supply | 5.5V ± 10% DC, max. 200mA |
| Data storage | |
| Integrated data storage | up to 200 gauges taking approx. 1 mill. values |
| Interface | |
| USB | Cable and SmartGraph3 software included in delivery |
| Display | |
| Definition of measured values | 2 decimal places |
| Control | Touch screen, capacitive |
| Technology | TFT, resolution 240x320, 65k colors, very good contrast due to Piezoresistive technology |
| Surface, toughened glass | Degree of hardness: 7, scratch-resistant |
| Accessories | |
|---|---|
| 5810-00K: XP100 Temp Recording Meter with 3120.52 Plunge Sensor and 2m cable | 5810-00K |
| PT100 plunge sensor, long | 3120.530 |
| PT100 plunge sensor, long | 3120.540 |
| PT100 plunge sensor out of stainless steel for foodstuffs | 3120.550 |
| Immersion probe for XP100 | 3120.560 |
| PT100 surface sensor | 3120.600 |
| Extension cable for sensor, 10m | 8120.KAB10 |
