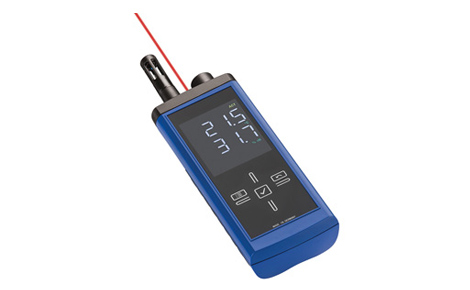

Hand-held Pyrometer Temperature / Humidity Measuring device / Dew Point / Surface Temp with Contact-free Temp Measurement

Model: 5725-00

NIST Certification available.

The powerful and compact handheld device with state-of-the-art robust design. Excellent accuracy. The high-resolution color screen displays rel. humidity, temperature and dew point. Excellent readability. The calibration function (offset correction) guarantees the long-term use without compromising the accuracy. Includes calibration certificate, USB interface with Smartgraph 3 software. Features on/off switch and touch screen.

Purchase item

Technical Data

Additional Equipment

• Hand-held measuring device XC250	Model: 5725-00
  Dimensions	6 3/4 x 2 1/2 x 1 3/8", 170x60x35mm
  Weight	approx. 8.8 oz, 250g
  Temperature Sensor	NTC
  Measuring range	-4 to 122°F, -20 to 50°C
  Resolution	0.1°C
  Accuracy	±0.2° (0...40°C) otherwise ±0.4°C
  Surface Temperature	Thermopile
  Measurement range	-70....380°C
  Unit	°C
  Accuracy	±0.5°C (0...50°C) otherwise ±4°C
  Resolution	0.1
  Hummidity Sensor	Capacitive
  Measurement range	0…100%RH
  Accuracy	± 2% RH
  Resolution	0.1% RH
  Calculations	Dew point temperature °C or °F Absolute humidity g/m3 Mixed ratio g/kg or gr/lb
  Functions	Statistical calculations MAX, MIN, HOLD, AVG, ACT, Temperature correction and humidity correction factors (offset)
  Storage conditions
  Permitted ambient temperature	-4 to 140°F, -20...60°C
  Permitted rel. humidity	<95% RH non-condensing
  Operating conditions
  Permitted ambient temperature	-4 to 122°F, -20°C...50°C
  Permitted rel. humidity	<90%RH non-condensing
  Power supply
  Power consumption	5.5V ± 10% DC, max 200mA
  Active power consumption	Approx. 70mA
  Passive power consumption	Approx. 40µA
  Battery life	Approx. 24h (2.6Ah battery capacity)
  Warranty	12 months

• Case for hand-held measuring device

  3120-CAS
