Model: 5700-00

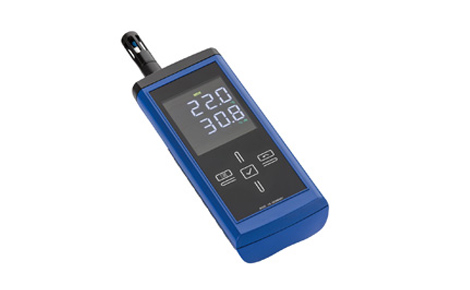

Hand-held measuring device XC200 for measuring temperature and humidity. The powerful and compact handheld device with state-of-the-art and robust design. Excellent accuracy. The high-resolution color screen displays rel. humidity, temperature and dew point. Excellent readability. The calibration function (offset correction) guarantees the long-term use without compromising the accuracy. Features on/off switch and touch screen.

Comes with Calibration Certificate, USB Interface with Smart3 Software.

To Order a case for this meter click here.

Purchase item

Technical Data

• XC200	5700-00
  Dimensions	6 3/4" x 2 1/3" x 1 3/8"(170 x 60 x 35mm)
  Weight	approx. 9 oz (250g)
  Temperature Sensor	NTC
  Measuring range	-20 to 50°C, 4° to 122° F
  Resolution	0.1°C
  Accuracy	±0.2° (0...40°C) otherwise ±0.4°C
  Hummidity Sensor	Capacitive
  Measurement range	0…100%RH
  Accuracy	± 2% RH
  Resolution	0.1% RH
  Calculations	Dew point temperature °C or °F Absolute humidity g/m3 Mixed ratio g/kg or gr/lb
  Functions	Statistical calculations MAX, MIN, HOLD, AVG, ACT, Temperature correction and humidity correction factors (offset) Power saving functions
  Storage conditions
  Permitted ambient temperature	-20...60°C
  Permitted rel. humidity	<95% RH non-condensing
  Operating conditions
  Permitted ambient temperature	-20°C...50°C
  Permitted rel. humidity	<90%RH
  Permitted altitude above sea level	9800 ft (3000m)
  Power supply
  Power consumption	5.5V ± 10% DC, max 200mA
  Active power consumption	Approx. 70mA
  Passive power consumption	Approx. 40µA
  Battery life	Approx. 24h (2.6Ah battery capacity)
  Warranty	12 months
